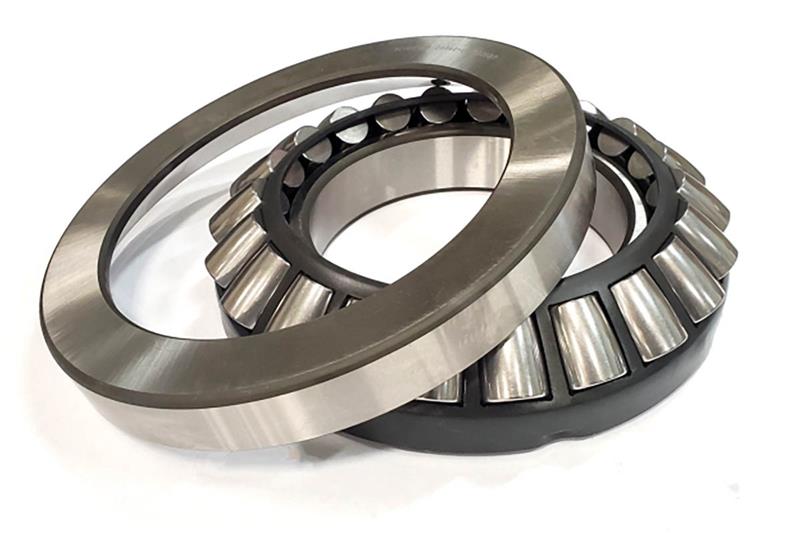

What Are Thrust Bearings?

An axial load is supported by a thrust bearing, it is a form of rotary bearing that rotates between parts to reduce friction (mostly in low-speed applications). The axial bearing is what allows pieces to rotate with one another. Rolling components in thrust bearings are typically used to support the axial loads of rotating objects.

Call Us: +91-9920211799

Thrust Bearings Design

There are numerous bearing designs that can be used in thrust settings. While most thrust bearings have raceways cut into the faces of mated rings, radial-load ball bearings have a roller race at the opposite outer and inner bearing rings. This configuration provides some support for radial loads but little to no support for loads that are parallel to the bearing axis. Additionally, thrust ball bearings are incapable of supporting moment loads.

The most typical rolling elements utilised for thrust applications include balls, tapered rollers, cylindrical rollers, needle rollers, and spherical rollers.

Thrust Bearings Specifications

Shaft Washer Diameter

The diameter of a shaft washer is measured across the borehole, which serves as the shaft’s contact. This is equivalent to a non-thrust bearing’s inner diameter.

Housing Washer Diameter

The component’s housing washer diameter, which is carved with a raceway for rolling elements, is measured in a straight line between antipodal locations.

Width

The width of a bearing can also be thought of as its “height” because it is the distance across the side of the bearing that is parallel to the shaft axis.

ENQUIRE NOW

Types Of Thrust Bearings

Tapered Roller Thrust Bearing

The amount of force that a tapered roller thrust bearing can support depends on the angle formed between the bearing axis and the line of contact between the raceway and the tapered roller. This bearing is better suited for axial loads if this angle is larger than 45 degrees. To hold the roller assembly in place, these bearings need a cell and occasionally a flange as well.

Cylindrical Roller Thrust Bearings

This kind of bearings circulates the rollers in a vertical, radial pattern around the bearing axis. To lessen the tension between the rollers and the outside wall of the house washer raceway, these rollers must be capped or end-relieved.

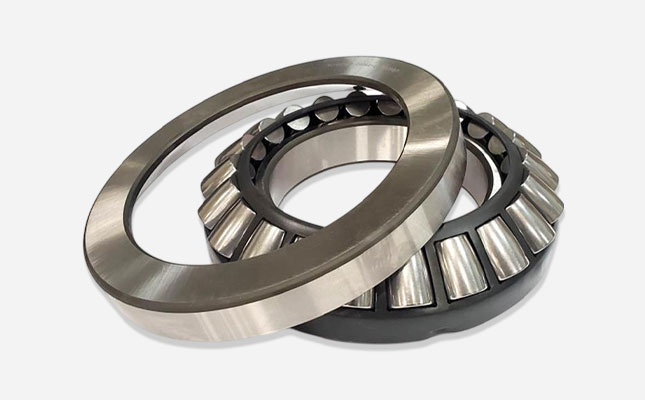

Spherical Roller Thrust Bearing

The raceways closely mimic the cone-and-cup structure found in typically tapered roller bearings, while the rolling components are fashioned like barrels. As a result, the bearing has the ability to self-align, which is advantageous in applications where shock loads or shaft deflection may be present.

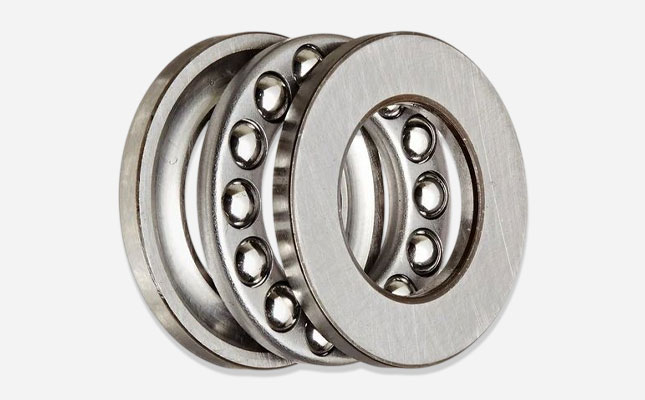

Thrust Ball Bearing

Radial loading cannot be transmitted by thrust ball bearings. This type is prone to misalignment, so producers often add a sphered groove to the housing washer to lessen the likelihood. Although they operate well in high-speed applications, they struggle under huge loads.

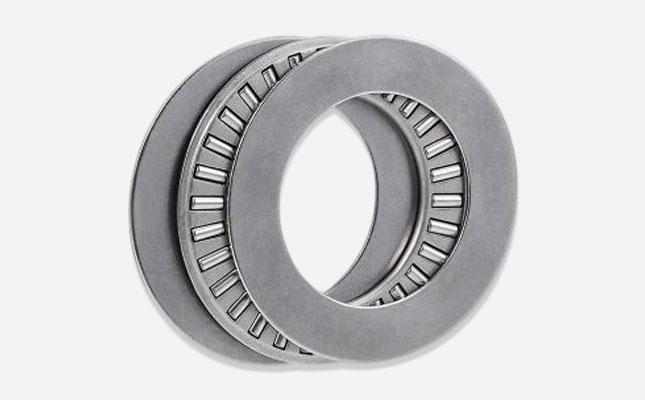

Needle Roller Thrust Bearing

Thrust bearings with needle rollers are prized for their low height and a substantial number of rolling elements. As a result, they are sometimes used without a shaft washer or housing washer; instead, when appropriate, the rolling elements make direct contact with the rotating parts. These have zero radial load capacity but very high axial and shock loads.

Applications Of Thrust Bearings

Automotive

In modern vehicle gearboxes, thrust bearings are used to endure the axial stress. They are ideal for automobile applications that are high-speed and oil-lubricated.

Transportation

Thrust bearings are crucial for the transportation sector because they enable stronger and better engines and propellers.

Water Turbines And Generators

The ability to reduce friction and drag makes some types of thrust bearings perfect for use in generators and water turbines.

Heavy-Duty Equipment

Heavy-duty equipment like drills and cranes can use thrust bearings with high load ratings.

Machines Used In Industry

Thrust bearings are an essential part of many different kinds of industrial machinery because rotating shafts are required.

Mining And Building

Thrust bearings can handle axial loads in machinery used in severe mining and construction situations since they are often built of corrosion-resistant materials.

Benefits Of Thrust Bearings

Thrust ball bearings are a crucial component in a variety of applications due to their high capacity for load.
These are simple to mount and remove different variations to meet different demands
Thrust Bearings are really dependable, easily available, and resist hostile situations.
