What Are Spherical Roller Bearings?

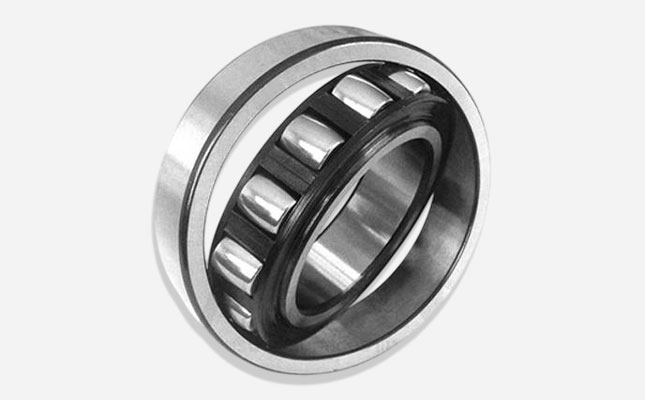

A rolling-element bearing with spherical rollers that functions on the idea of rolling contact without sliding or fretting is referred to as a “spherical roller bearing”. Depending on whether there are one or two rows of balls between the inner and outer rings, it can be categorized as either a single row or a double row.

In spherical roller bearings, two rows of barrel-shaped, friction-reducing rollers are sandwiched between an inner ring with two inclined raceways and an outer ring with a spherical racetrack. These bearings are employed in numerous heavy-duty industrial applications because of their raceway geometry, which is appreciated for their capacity to correct misalignment and shock loads.

Spherical Roller Bearings Design

When the load you need to handlesurpasses the load rating of other types of bearings, such as standard ball bearings, you can utilize spherical roller bearings. Two rows of rolling elements in the outer ring are spaced apart by a radial gap. Both ends of these rolling components make contact with the inner racing surface.

The rolling elements can move freely within the radial gap because there isn’t a separate cage or retainer. They will always be aligned on their axis of rotation when the spherical roller rotates, therefore no further alignment technique is needed. Spherical roller bearings come in many different materials, so it’s important to choose the correct type for your application.

Factors for Determining the Effectiveness of Spherical Roller Bearings

Operating Temperature

The range of outside temperatures known as the operating temperature is where a bearing performs most consistently. Because lubricant viscosity rises in low-temperature conditions, a larger minimum load is needed.

Rotational Speed

The rotational speed known as the reference speed is the point at which the heat produced by rotation is equal to the heat released by the lubricant and the geometry of the bearings.

Maximum RPM

The maximum RPM at which the bearing is intended to function is known as the limiting speed. The strength of the bearing cage, the accuracy with which the bearing was produced, and the properties of the lubricant all play a role in this.

Minimal Load

A minimum axial load must be provided to the rollers of the bearing in order for it to operate at high speeds with stable acceleration and deceleration. This protects the cage against slipping or excessive friction as well as inertial forces.

ENQUIRE NOW

Types of Spherical Roller Bearings

Spherical Roller Bearings

These bearings may respond well to significant radial loads. Since they are barrel-shaped in terms of design, they can withstand any angular errors and misalignments that may occur in the case of heavy-duty machinery because of higher load.

The Spherical Roller Thrust

The Spherical Roller Thrust bearings have an asymmetrical barrel-shaped roller, which allows them to adjust well to a higher load and speed. This bearing’s primary function is to ensure continuous alignment and a higher thrust capacity. These bearings also produce a smaller fraction in terms of production and design.

Applications Of Spherical Roller Bearings

For Handling Huge Weights

Industries that need heavy-duty tolerance and load in terms of bearings can benefit greatly from the spherical roller bearing.

Agriculture

Plastic balls are often used in agricultural tractors and harvesters (e.g., cotton ginners).

Steel Mills

Spherical Roller Bearings of plastic are also utilized in steel mills/steelworkers who need heavy-duty rollers with more durability than stainless steel rollers can provide.

Others

The bearing may need to tolerate misalignment because of the design and requirements of a machine’s operation.

Benefits Of Spherical Roller Bearings

Due to the abundance of spherical rollers, these bearings offer an exceptional load-carrying capacity for radial, thrust, and combined loads in one direction.
Because they are self-aligning, spherical roller thrust bearings can accommodate misalignment.
These bearings may operate at speeds between moderate and high.
Since spherical roller thrust bearings have a low coefficient of friction and thus, they require less maintenance.
The spherical roller bearing can function pretty well when the ball bearings could not function due to its distinct design and efficiency.
